034Motorsport ZTF-LP01 Flowform Wheels, 18x8.5 ET45, 66.6/57.1MM Bore

MSRP: £1,667.16
Was: £1,667.16
Now: £1,500.44
(You save £166.72 )
(No reviews yet) Write a Review
SKU:
034-604-0101
CATEGORY:
WHEELS
Adding to cart… The item has been added

034Motorsport ZTF-LP01 Wheels are light-pressure cast (Flowform) wheels that offer incredible strength, low weight, great looks, and affordable pricing. Rest assured that ZTF Wheels for your specific vehicle will fit perfectly without any guessing games or modifications to fenders or suspension components. This wheel maximizes tire fitment on these vehicles. See fitment notes below to see specific product information regarding fitment testing on these vehicles.



Specs:
Size: 18"
Width: 8.5"
Weight: 20.7lbs
Offset: ET45
Bolt Pattern: 5x112
Center Bore: 66.6mm (hub-centric ring included for 57.1mm)
Lug Seat: OE Ball Style
Center Cap Retainer: Double O-Ring (will not fall out)

Colors:

  • Anthracite
  • Bronze
  • Hyper Silver
  • Satin Black

Perfect Fit Fitments:

  • MK5/6 Golf/GTI/R Fitment:
    • Michelin Pilot Sport 4S 235/40-18
    • Michelin Pilot Sport 4S 245/40-18*
    • Drag Racing: Hoosier DR2 245/40-18*
  • MK7/8 GTI/R Fitment:
    • Michelin Pilot Sport 4S 235/40-18
    • Michelin Pilot Sport 4S 245/40-18*
    • Michelin Pilot Sport 4S 255/35-18*
    • Drag Racing: Hoosier DR2 245/40-18*
  • 8V/8Y A3/S3 Audi Fitment:
    • Michelin Pilot Sport 4S 235/40-18
    • Michelin Pilot Sport 4S 245/40-18*
    • Michelin Pilot Sport 4S 255/35-18*
    • Drag Racing: Hoosier DR2 225/40-18
  • 8J TT/TTS/TTRS Audi Fitment:
    • Michelin Pilot Sport 4S 245/45-18
    • Michelin Pilot Sport 4S 255/40-18*
    • Drag Racing: Hoosier DR2 245/40-18*
  • 8S TT/TTS/TTRS Audi Fitment:
    • Michelin Pilot Sport 4S 245/40-18
    • Michelin Pilot Sport 4S 255/45-18*
    • Drag Racing: Hoosier DR2 245/40-18
  • 8V.5 RS3 Audi Fitment:
    • Michelin Pilot Sport 4S 245/40-18
    • Drag Racing: Hoosier DR2 245/40-18
  • B8/B9 A4/S4 Fitment (+ 10mm 034 Spacer):
    • Michelin Pilot Sport 4S 245/45-18
    • Michelin Pilot Sport 4S 255/40-18
    • Drag Racing: Hoosier DR2 245/40-18

*May Cause Minor Rubbing Depending on Lowering, Recommended to Add Camber

Fitment over Factory DAZA 8-Piston Brake Calipers Requires Minimum 2mm Spacer

Specialized Sizing

Some of our wheel sizing may seem unconventional at first. For example, questions frequently arise regarding the 9.3 inch wide wheel. The answer is simple. The ZTF wheel line is unique compared to other wheels offered in the segment in that they are designed for precise, model-specific fitment to maximize tire size while ensuring adequate clearance to the fenders and suspension components. Since these wheels are fully customized by the 034Motorsport engineering team, the optimal width from a performance and fitment standpoint can be chosen. In some cases that still results in the conventional half-inch sizing scale. But for other cars where conventional half-inch increments are a compromise, non-standard widths can be designed, such as the 9.3 inch and 11.2 inch wide ZTF wheels. Rest assured that ZTF Forged Wheels for your specific vehicle will fit perfectly without any guessing games or modifications to fenders or suspension components.



ZTF-LP01 WHEEL FEATURES

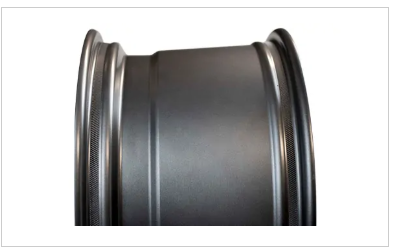

Gear Cut Knurled Bead Seat
Gear Cut Knurled Bead Seat:

All ZTF Wheels feature a gear cut knurled bead seat which improves the bind between the tire and the rim. This prevents tire creep/slippage and improves traction in high performance driving conditions.

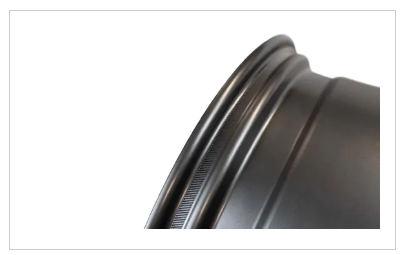

Reinforced Inner Rim Flange
Reinforced Inner Rim Flange:

An example of how material is removed while key areas retain mass. In this case, we added forged mass to the inner rim to resist impact bending.

Max Fitment
Max Fitment:

These wheels are application specific. We take into account the proper performance wheel and tire size and the aesthetic of the car to make sure that these wheels not only perform well, but also look fantastic.

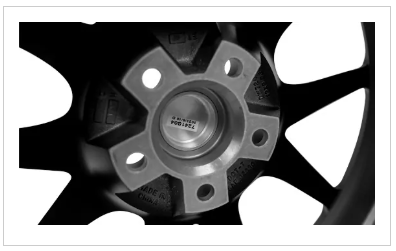

Brake Clearance Compatibility
Brake Clearance Compatibility:

Wheel designs have been tested with some of the world's premier aftermarket big brake kit suppliers to ensure that these wheels clear potential racing upgrades. Wheels are designed to clear brakes from the design phase, while maintaining max concavity and good looks. Notice the raised rim barrel which allows for large diameter rotor and caliper combinations.

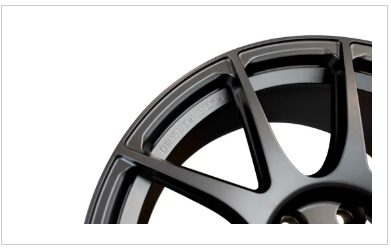

Rigid Spoke Tracer
Rigid Spoke Tracer:

ZTF Wheels feature structural improvements to basic designs such as the rigid spoke tracer. This improves the stiffness and durability of the wheel while keeping the weight of the wheel to a minimum. Improving stiffness is key because if the wheel can withstand deflection/deformation in high load situations, you can improve driving consistency, which in turn leads to better confidence on the track.

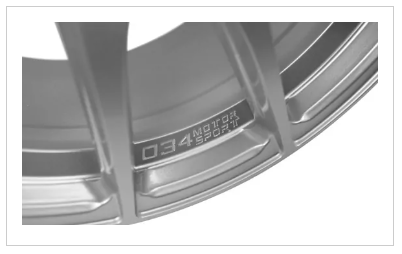

Weight Reduction
Weight Reduction:

Painstaking care was taken in removing s much material as possible while keeping material in critical areas to ensure complete safety and reliability. All areas of the wheels are considered and tested with FEA Analysis software and tested in both laboratory and real world conditions.
