Product Description:

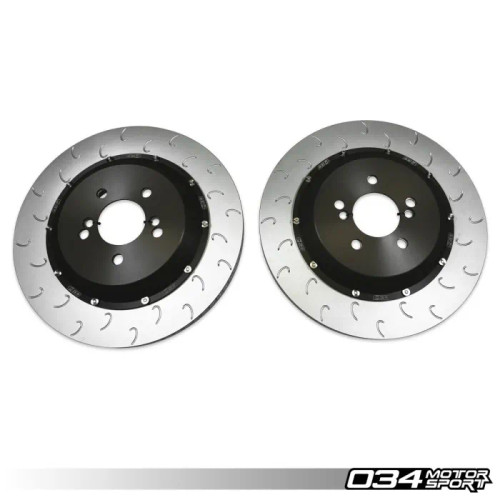

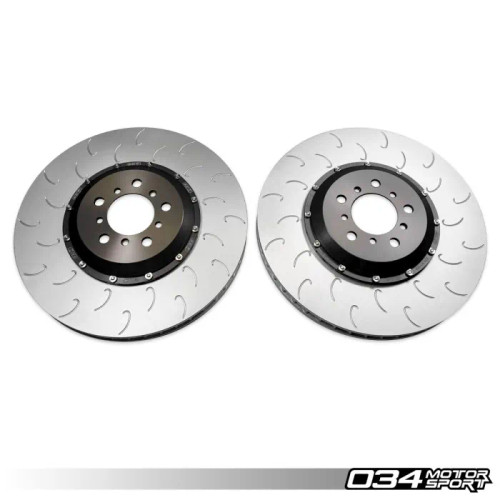

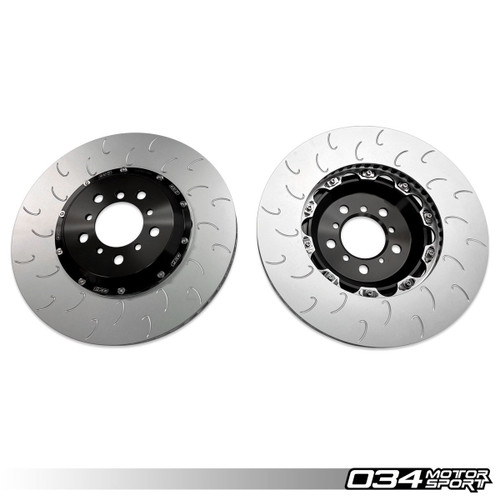

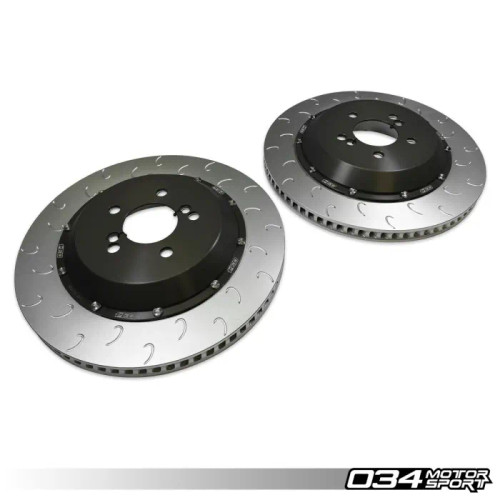

The 034Motorsport 400mmx36mm 2-Piece Floating Front Brake Rotor Upgrade Kit for the BMW F8X BMW M2 Competition/CS, M3/M4 C/CS, & M4 GTS is a complete replacement brake rotor kit, designed to work flawlessly with the factory front calipers found on the BMW F8x M2 Competition/CS & M3/M4.
Weighing in at approximately 30.6 lbs, our lightweight design retains proper thermal mass in the rings to adequately capture heat, while utilizing 48 directionally curved vanes to forcefully flow cool air through the rotor to dissipate heat.
Advantages of J-Slot over Drilled Rotors:
Typically, OEM rotors that are drilled are first cast and then drilled, which creates additional stress points that weaken structural integrity, making them more prone to cracking as they go through heat cycles and wear over time. To address these concerns, 034Motorsport engineers opted for a J-Slot design over a drilled rotor, which effectively clears contaminants from the pad and rotor surfaces while allowing for hot pad outgassing without reducing the structural integrity of the rotor.
True 2-Piece Design:
While BMW employs a 2-piece rotor design utilizing pins in which the rotor ring can slightly expand and contract compared to the rotor hat, the rotor ring is not fully floating. Additionally, the outer friction surface cannot be replaced individually, adding unnecessary cost to brake services.
034Morsport employs a high-strength steel bobbin-style floating 2-piece rotor design versus the BMW OEM pin-style design. 034Motorsport’s 2-Piece Rotors allow the rotor ring to “float” on the central hat while the rotor ring expands and contracts, preventing the likelihood of cracks and rotor warpages in high-performance driving scenarios.
The central hat on 034Motorsport 2-Piece rotors is crafted from 6061-T6 aircraft-grade aluminum, while the brake disc is made from a proprietary alloy that is able to withstand extreme braking temperatures while maintaining structural integrity. The high carbon content of the brake disc also allows for the rotor to take a lot of heat and dissipate it quickly. These rotors improve thermal capacity by utilizing 48 directionally curved cooling vanes to forcefully flow cool air through the rotor and are profiled specifically to improve heat dissipation compared to the OE rotor vane design.
Note: For F8X M2 CS, M3/M4 Competition/CS, or M4 GTS owners with the factory M-CCB Carbon Ceramic Brake Package (2NK) looking for a much more cost-effective brake rotor alternative, the 034Motorsport 2-Piece Floating Rotors are a direct swap for your factory carbon ceramic brake rotors!
The brake calipers and dimensions of the carbon ceramic brake rotors are identical to the calipers and iron brake rotors in the 2NH Brake Package found in the M2 Competition and M2 CS, making them cross-compatible.
034Motorsport 2-Piece Rotors have been thoroughly tested in high-intensity motorsport events, proven to significantly improve braking and thermal headroom and for extreme performance street and track driving, making them the perfect replacement rotor for your BMW F8X.
Features:
- Lightweight Construction (30.6lb 034Motorsport Rotor), the Same Weight as OEM, but with Improved Metallurgy and Thermal Capacity, despite Lightweight Construction to Match OEM Rotor Lightweight Design Elements
- Floating, 2-Piece Design
- Aerospace Grade Aluminum Hats
- CM-250 Special Alloy Rotor Rings
- J-slotted Friction Face
- OEM Fitment & Functionality
- 48 Curved Vanes Force Cooling Air through Brake Disc
- Floating Bobbins Mounting System
- Replaceable Rotor Rings
- Lower Long-term Maintenance Cost
